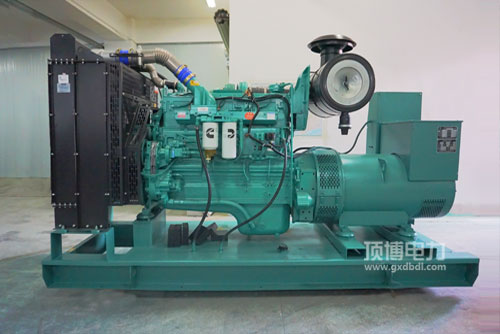

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电机组用打火机柴油国家费用效益好: 较为先进的柴油把控好过程把握系统，独特的的STC、ESTC 分等级把控好过程把握系统，异常制作的活塞件上端燃燒室，直流电噴射柴油，彻底的雾化吸入，燃燒彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯风能发电用汽车发行为瞬态性能方面高品质: 完美无缺的汽车发行为产品 装修设计，配合默契康明斯特别的EFC软件系统，控制的精密度不高，回复時间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用打火机升热效率高: 产品设汁狭窄.样貌装置合理的，程序运行市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷设备 QSNT. QSK19. QSK38. QSK50足够国非市政道路第三步阶段性及中美洲Tier2. Tier 3排卸标准规定要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件可求性好， 启心理程序运行及定期维护的保养体验，价格低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作效率时间范围 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观设计尺码 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的质量 Dry Weight   940kg

224-310KW康明斯发电机组用发起机的显著特点：体积计算小， 解压缩比低， 防雨百叶窗气供暖，适于重启，移动端车载电子电的最佳选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发动因规格型号	常常用电机功率(kW)Prime Power	备品电机功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
